Automation solutions for skillet conveyors

Skillet conveyors – consisting of a group of lined-up individual platforms – are often used in the assembly of automotive production. For reasons of ergonomics and process, the individual platforms are usually equipped with lift tables to bring the material being conveyed to a height necessary for assembly.

skillet-conveyor-2-1344x756


Whether light or heavy, whether with contacted or contactless energy transfer, whether with or without comprehensive safety functions – our MAXOLUTION® system solutions for skillet conveyor offer you the right drive and automation solutions with innovative technologies:

  • Powerful and compact drive and application controller
  • High-performance safety controller for comprehensive safety functions
  • Slotted waveguide technology for reliable and stable data transmission in a high bandwidth
  • Contactless energy transfer for particularly low-maintenance systems
  • Innovative software tools for engineering, project planning, simulation and startup

Application-specific functions for maximum efficiency and occupational safety of workers in production, among others:

  • Lifting heights depending on the position and the load (e.g. Body type) – can also be implemented with safety functions SLS / SLP
  • Safe envelopes for applications with lifting

MAXOLUTION® connected – innovative software solutions for networking shop floor automation and integration into the IT level:

  • Detailed online diagnostics of the vehicles using the MOVIVISION® parameterization and diagnostics software
  • Condition monitoring to improve system diagnostics and early failure detection
  • Simulation for the entire assembly process – from quality testing to productive operation
  • Digital twin of the production system – from OT to IT
  • EdgeDevices for data coupling of third-party I/O devices via MQTT

We're here to help

  • Our experts know your industry and its requirements
  • Our global network ensures we are close at hand, wherever and whenever you need us
  • We have the expertise and tools to provide you with the best possible support and advice
Contact Us

The benefits for you

Automation from a single source!
From software, communication and sensor technology to control, inverter and drive technology

Standardized or customized!
Flexible MAXOLUTION® technology modules for versatility and maximum availability.

Know-how!
With many years of experience, we implement optimized and proven solutions with our customers in international projects.

Always close to you!
With worldwide startup service directly on site – fast and reliable

Related Topics

Contact

Data & documents

International regulations

Skillet conveyor safety

  • MOVIPRO® PHC drive and application controllerskillet-safety-920x460
    • Powerful and compact with integrated frequency inverter from 2.2 kW to 7.5 kW for the lifting axis
    • Fast diagnostics via 7-segment display
    • Parameter memory for fast startup and device replacement
  • MOVISAFE® HM31-B safety controller
    • High-performance safety controller for advanced safety functions
    • Memory card for fast device replacement
    • Safe envelopes
  • DataMatrix code tape and a safe 2D camera system safe position detection
    • Safe position detection
  • Slotted waveguide technology
    • Safe WLAN communication from the vehicle to the stationary MOVISAFE® HM31-B safety controller
  • MOVIVISION® parameterization and diagnostics software for detailed online diagnostics
    • User-friendly Motion Profile Editor software module for managing lifting heights
  • MAXOLUTION® connected software modules
    • Digital twin of the production system with high-resolution 3D visualization
  • Options
    • MOVISAFE® UCS safety module for safety functions with lower complexity
    • MOVITRANS® contactless energy transfer system
    • Keypad for manual movement of the lift tables

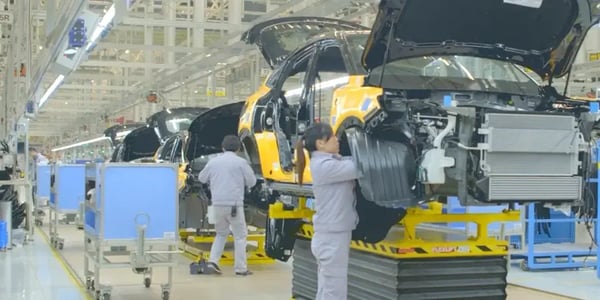

Skillet conveyors are often used as application solutions in automotive production:

  • In the pre-trim, trim or final line
  • In assembly lines in continuous operation, e.g. for door assembly or assembly of the drive train

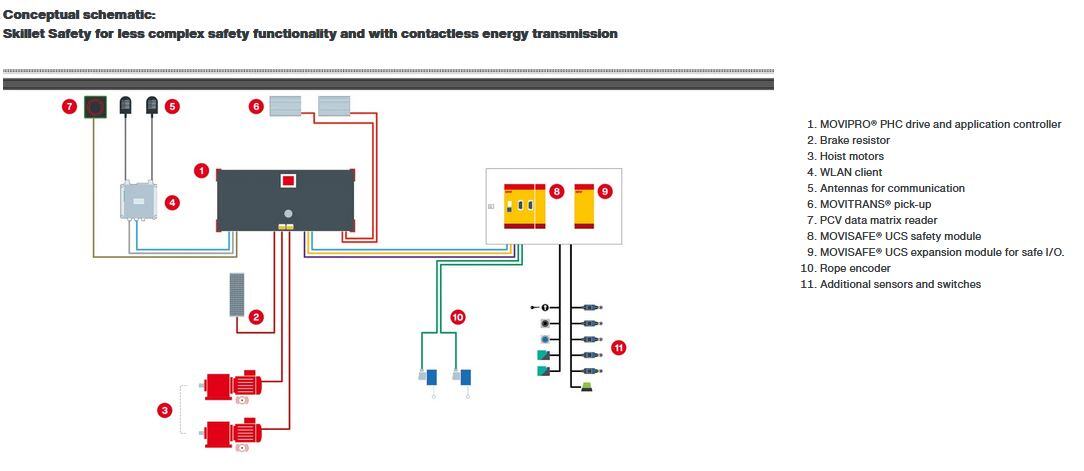

Skillet_Overview of tech_1

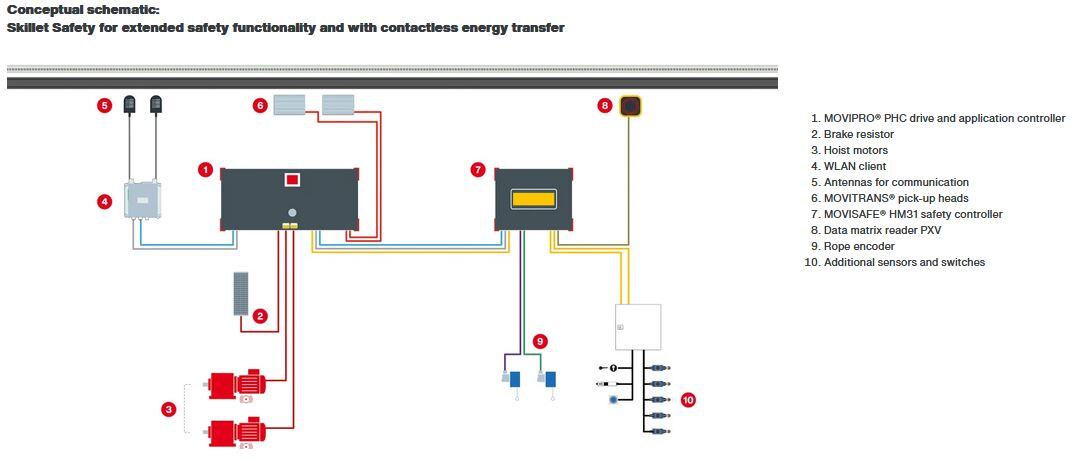

Skillet_Overview of tech_2



  • Control
  • Communication
  • Energy
  • Drive technology
  • Sensor technology
  • Safety technology
  • Software
