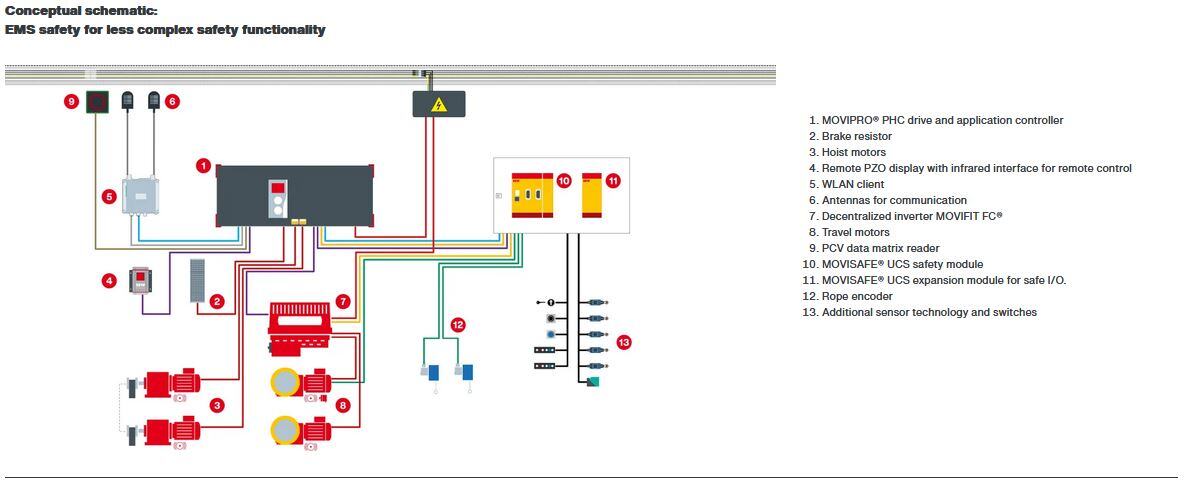

- MOVIPRO® PHC drive and application controller
- Powerful with integrated frequency inverter from 2.2 kW to 22 kW – usually for the lifting axis
- Other decentralized frequency inverters, e.g. travel and tilting axis, can be connected
- Fast diagnostics via 7-segment display
- Parameter memory for fast startup and device replacement
- MOVISAFE® HM31-B safety controller
- High-performance safety controller for advanced safety functions
- Memory card for fast device replacement
- Safe envelopes for applications with lifting
- DataMatrix code tape and a safe 2D camera system
- Safe position detection
- Slotted waveguide technology
- Safe WLAN communication from the vehicle to the MOVISAFE® HM31-B stationary safety controller
- EMS drives, e.g. the HK series
- Reliable switching thanks to coupling in the gear unit output stage
- Several sizes ensure permitted wheel loads of 2500 to 40 000 N
- MOVIVISION® parameterization and diagnostics software for detailed online diagnostics
- MAXOLUTION® connected software modules
- Digital twin of the production system with high-resolution 3D visualization
- Options
- MOVISAFE® UCS safety module for safety functions with less complexity
- MOVITRANS® contactless energy transfer system
- Keypad for manual movement of the vehicles
EMS safety electrified monorail systems are often used in automotive production:
- As an application solution for heavy-duty EMS:
- In the chassis line
- In pivot mounting
- As an application solution for light-duty EMS:
- In assembly lines, for example for motor, door or cockpit assembly – each with or without lifting as well as optional additional axes

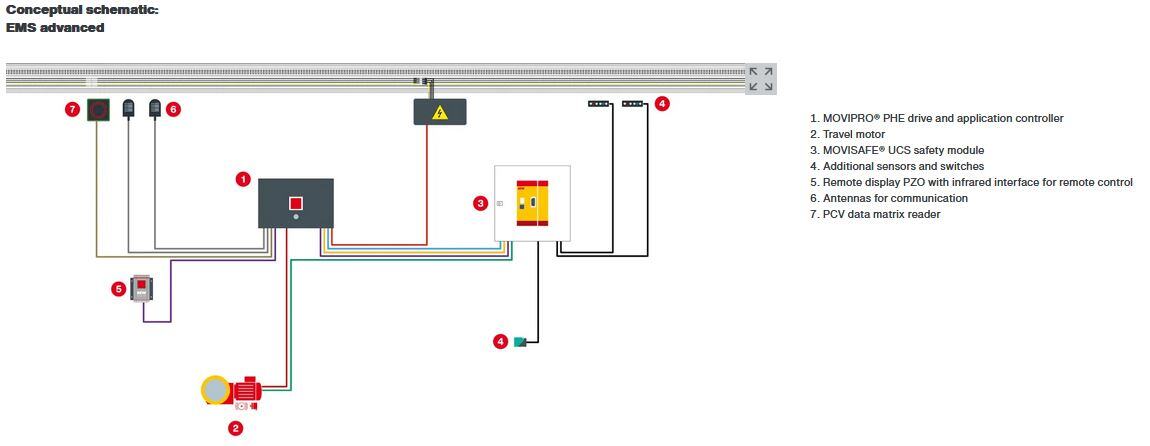

- MOVIPRO® PHE advanced drive and application controller
- Powerful with integrated frequency inverter 1.5 kW – usually for the travel axis
- Other decentralized frequency inverter can be connected
- Fast diagnostics via 7-segment display
- Parameter memory for fast startup and device replacement
- Datamatrix code tape and a 2D camera system
- For position detection
- Slotted waveguide technology
- WLAN communication from the vehicle to the stationary segment controller UHX-65
- EMS gear motors, e.g. the HW/HK series
- Reliable switching thanks to coupling in the gear unit output stage
- Several sizes ensure permitted wheel loads of 2500 to 40 000 N
- MOVIVISION® parameterization and diagnostics software for detailed online diagnostics
- MAXOLUTION® connected software modules
- Digital twin of the production system with high-resolution 3D visualization
- Options
- MOVISAFE® UCS safety module for safety functions with less complexity

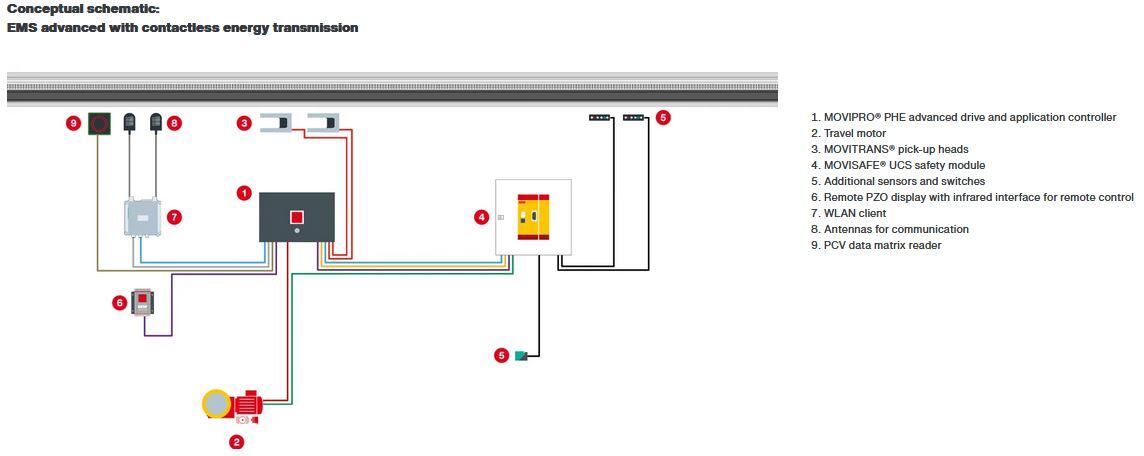

- MOVITRANS® contactless energy transfer system
- Keypad for manual movement of the vehicles

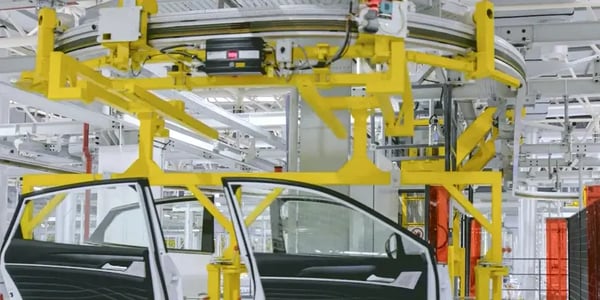

EMS advanced electric monorail systems are often used in automotive production as an application solution for light-duty EMS:
- In assembly lines, e.g. for door or cockpit assembly
- For floor-free transport in internal logistics, e.g. for battery, motor or seat tr

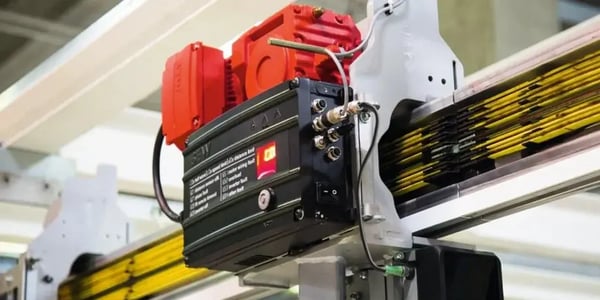

- MOVIPRO® PHE basic drive and application controller
- Powerful with integrated frequency inverter 1.5 kW
- Control or feedback via half-wave signals on the conductor rails (command and signal rail)
- Fast diagnostics via 7-segment displays and 16 status LEDs
- Parameter memory for fast startup and device replacement
- More detailed diagnostics via PC interface on the controller
- Optical/inductive proximity switch
- Distance monitoring to ahead EMS vehicles
- Half-wave modules stationary
- HTM (half-wave transmission module) for the command rail
- HRM (half-wave receiving module) for the signal rail
- Speed switching via half-wave commands or magnetic switch
- EMS gear motors, e.g. the HW/HK series
- Reliable switching thanks to coupling in the gear unit output stage
- Several sizes ensure permitted wheel loads of 2500 to 40 000 N
- MOVIVISION® parameterization and diagnostics software for detailed online diagnostics
- Options
- MOVISAFE® UCS safety module for safety functions with less complexity
- Keypad for manual movement of the vehicles

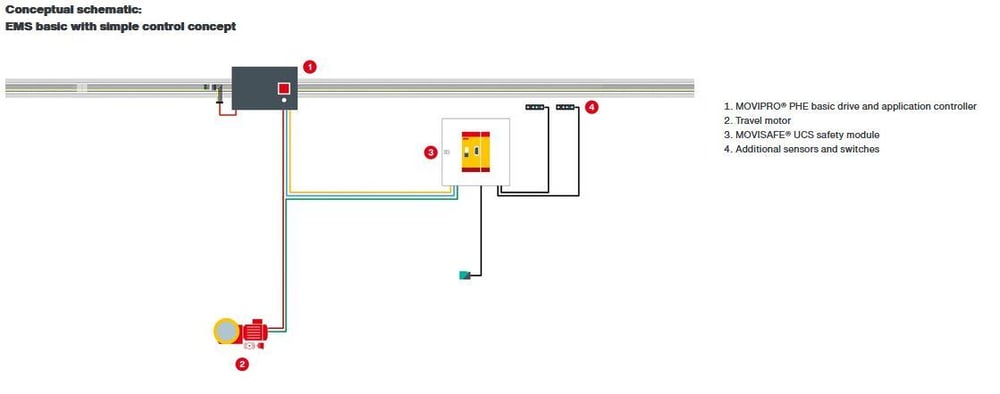

The EMS basic electrified monorail system is a cost-efficient application solution with a simple control concept for light-duty EMS.
- It is often used in automotive production:
- For simple assembly lines, e.g. for transporting doors and cockpits
- For simple transport tasks, e.g. for transporting parts/goods
- Other areas of application:
- In the food, beverage and manufacturing industry
- For retrofit in existing systems with the same control principle
